using System;
using System.Windows.Forms;
using DevExpress.XtraCharts;
// ...

private void Form1_Load(object sender, EventArgs e) {
    // Create an empty chart.

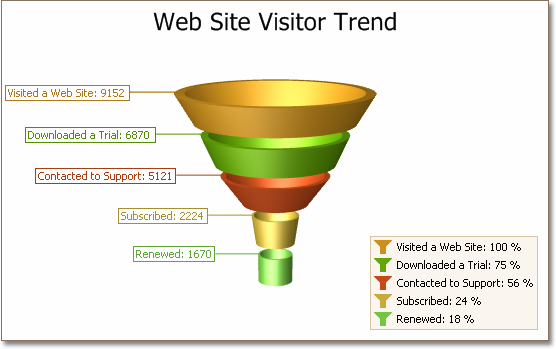

    ChartControl funnelChart3D = new ChartControl();

    // Create a funnel series.
    Series series1 = new Series("Funnel Series 1", ViewType.Funnel3D);

    // Populate the series with points.
    series1.Points.Add(new SeriesPoint("A", 28.5));
    series1.Points.Add(new SeriesPoint("B", 19.6));
    series1.Points.Add(new SeriesPoint("C", 17.1));
    series1.Points.Add(new SeriesPoint("D", 12.5));
    series1.Points.Add(new SeriesPoint("E", 9.6));

    // Add the series to the chart.
    funnelChart3D.Series.Add(series1);

    // Display a title for the series,
    // and adjust another view-type-specific options of the series.
    Funnel3DSeriesView funnelView = (Funnel3DSeriesView)series1.View;
    funnelView.Titles.Add(new SeriesTitle());
    funnelView.Titles[0].Text = series1.Name;
    funnelView.HeightToWidthRatio = 1;
    funnelView.HoleRadiusPercent = 70;
    funnelView.PointDistance = 5;

    // Adjust the value numeric options of the series.
    series1.PointOptions.ValueNumericOptions.Format = NumericFormat.Percent;
    series1.PointOptions.ValueNumericOptions.Precision = 1;

    // Access the view-type-specific series options.
    ((FunnelPointOptions)series1.PointOptions).PercentOptions.ValueAsPercent = true;

    // Position the series labels.
    ((Funnel3DSeriesLabel)series1.Label).Position =
        FunnelSeriesLabelPosition.LeftColumn;

    // Access the diagram's options.
    ((FunnelDiagram3D)funnelChart3D.Diagram).RuntimeRotation = true;
    ((FunnelDiagram3D)funnelChart3D.Diagram).RotationType =
        RotationType.UseMouseStandard;

    // Hide the chart's legend.
    funnelChart3D.Legend.Visible = false;

    // Add the chart to the form.
    funnelChart3D.Dock = DockStyle.Fill;
    this.Controls.Add(funnelChart3D);
}

Imports System
Imports System.Windows.Forms
Imports DevExpress.XtraCharts
' ...

Private Sub Form1_Load(ByVal sender As Object, ByVal e As EventArgs) _
Handles MyBase.Load
    ' Create an empty chart.
    Dim funnelChart3D As New ChartControl()

    ' Create a funnel series.
    Dim series1 As New Series("Funnel Series 1", ViewType.Funnel3D)

    ' Populate the series with points.
    series1.Points.Add(New SeriesPoint("A", 28.5))
    series1.Points.Add(New SeriesPoint("B", 19.6))
    series1.Points.Add(New SeriesPoint("C", 17.1))
    series1.Points.Add(New SeriesPoint("D", 12.5))
    series1.Points.Add(New SeriesPoint("E", 9.6))

    ' Add the series to the chart.
    funnelChart3D.Series.Add(series1)

    ' Display a title for the series,
    ' and adjust another view-type-specific options of the series.
    Dim funnelView As Funnel3DSeriesView = CType(series1.View, Funnel3DSeriesView)
    funnelView.Titles.Add(New SeriesTitle())
    funnelView.Titles(0).Text = series1.Name
    funnelView.HeightToWidthRatio = 1
    funnelView.HoleRadiusPercent = 70
    funnelView.PointDistance = 5

    ' Adjust the value numeric options of the series.
    series1.PointOptions.ValueNumericOptions.Format = NumericFormat.Percent
    series1.PointOptions.ValueNumericOptions.Precision = 1

    ' Access the view-type-specific series options.
    CType(series1.PointOptions, FunnelPointOptions).PercentOptions.ValueAsPercent = True

    ' Position the series labels.
    CType(series1.Label, Funnel3DSeriesLabel).Position = _
        FunnelSeriesLabelPosition.LeftColumn

    ' Access the diagram's options.
    CType(funnelChart3D.Diagram, FunnelDiagram3D).RuntimeRotation = True
    CType(funnelChart3D.Diagram, FunnelDiagram3D).RotationType = _
        RotationType.UseMouseStandard

    ' Hide the chart's legend.
    funnelChart3D.Legend.Visible = False

    ' Add the chart to the form.
    funnelChart3D.Dock = DockStyle.Fill
    Me.Controls.Add(funnelChart3D)
End Sub
